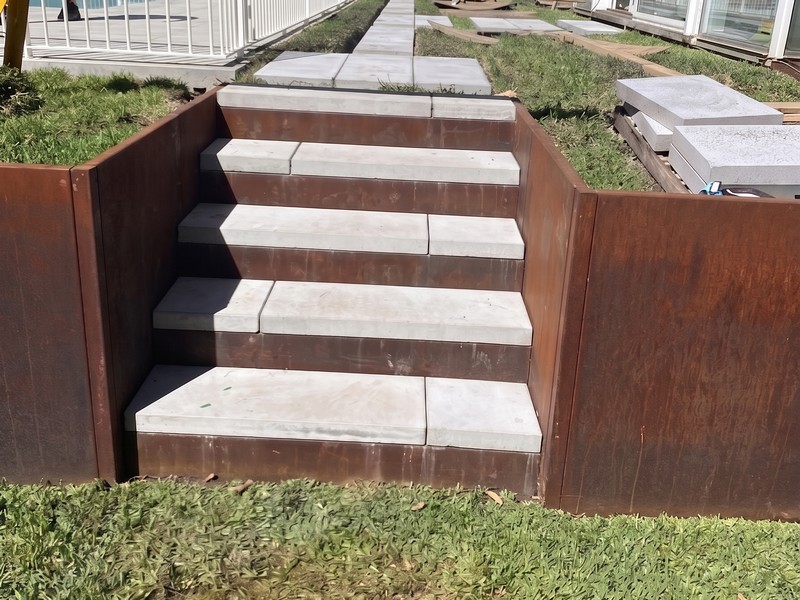

12'1" long x 36" tall with steps 3'4" wide
How To Assemble A Corten Retaining Wall
Need a layout drawing for a different sized retaining wall?
Email us the size and we will get back to you with a suggested layout
[email protected]It is recommended to seal the internal steel that will be in contact with the soil, with a bitumen damp proof membrane. This will increase the lifespan of the wall.
Full Kitset
Parts List
| Part | Quantity |
|---|---|
| Corten Squ End Cap Vert 911 x 203mm | 2 |
| Corten Panel 911 x 911 x 3mm Top | 3 |
| Corten Panel 759 x 911 x 3mm Top | 2 |
| 90deg 50mm square corner joiner ext-911 | 2 |
| 90deg 50mm square corner joiner int-911 | 2 |
| Riser Top-35 x 1010 x 175 x 3mm | 3 |
| 90deg 50mm square corner joiner ext-302 | 2 |
| Corten Edge FT35 x 200 x 200 x 2mm | 2 |
| Corten Edge FT35 x 1216 x 200 x 2mm | 1 |
| Corten Angle post FT 72" x 2.0" | 4 |
| UNC 5/16th Nut, bolt and washer, 3/4' (19mm) fully threaded | 1 |
